Proven Success in Global Glass Processing
500+ Global Installations | 20+ Years Industry Expertise | ISO9001 & CE Certified
Customer: Strugal, Morocco
Parent Company: Struglass, Spain
Industry: Architectural Glass
Solution: Jumbo Vertical Glass Washing Machine
Maximum Glass Size: 5000 × 3000 mm
Washing Width: 3000 mm
CNC Integration: SkillGlass Vertical CNC
——————————-————————————————————————————————
Strugal’s Moroccan operation is part of the wider Struglass group in Spain, serving the architectural glass market in North Africa.

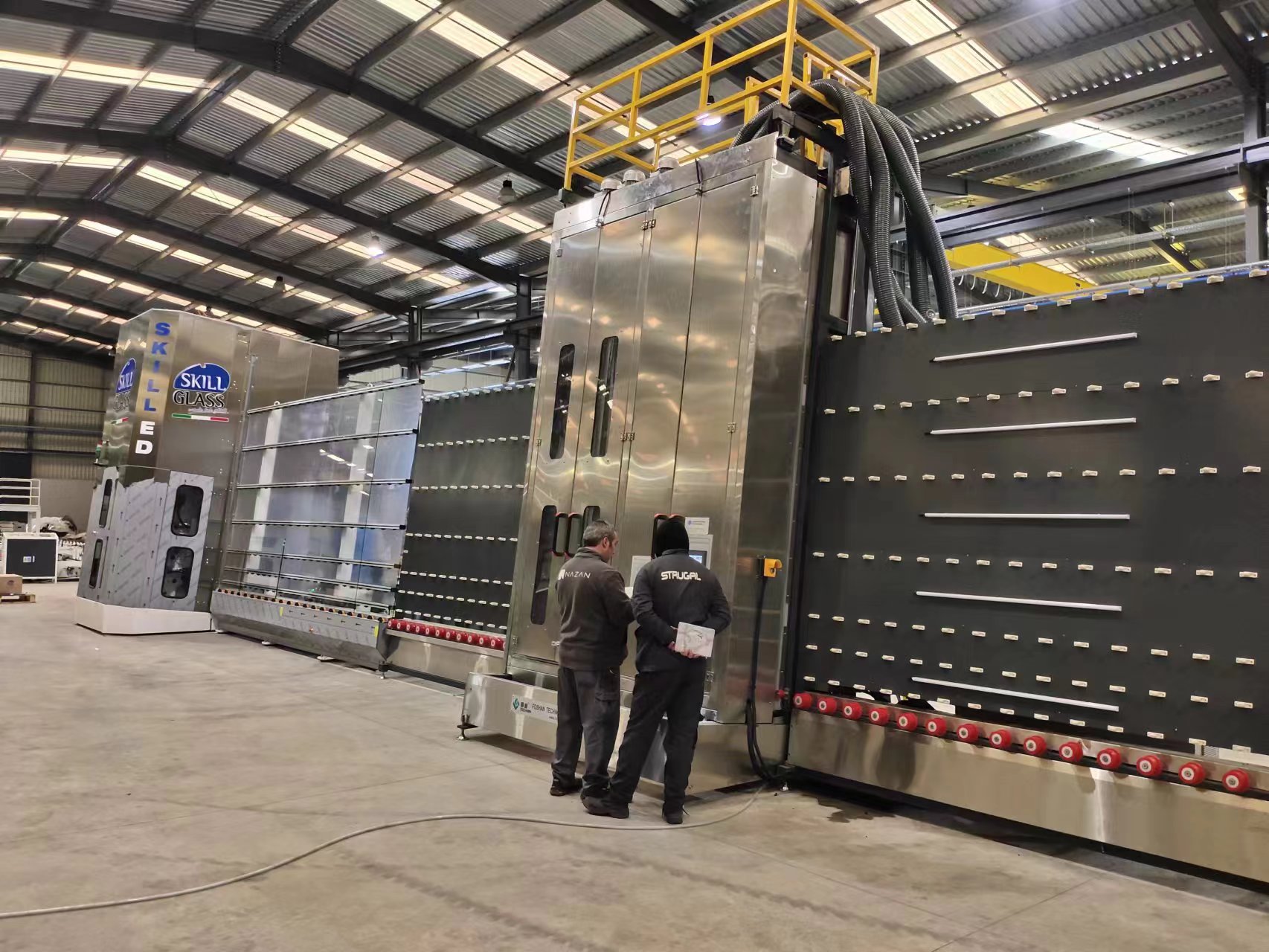

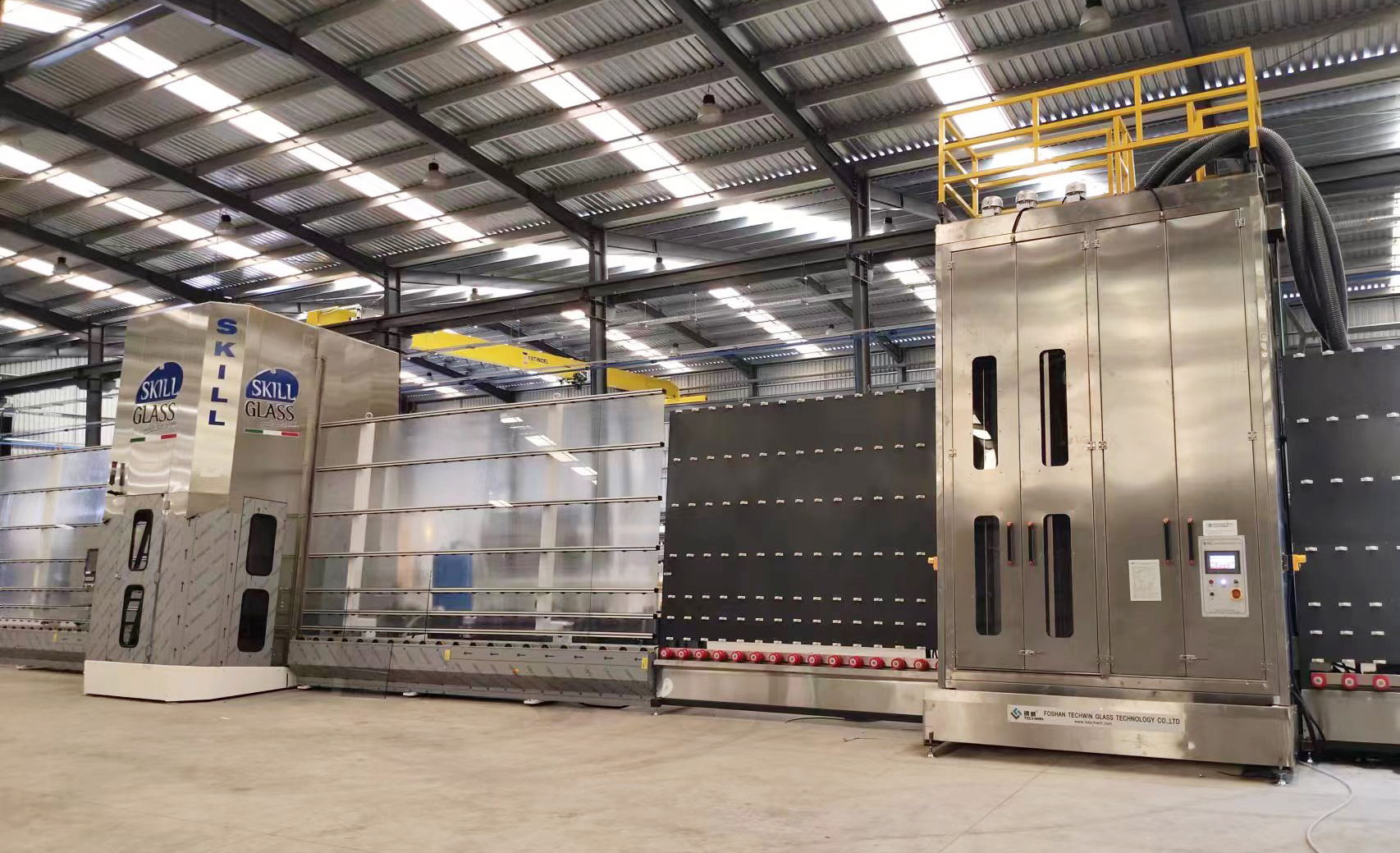

To support its large-format glass processing, Strugal selected Techwin for a 3000 mm jumbo vertical glass washing machine, integrated directly with a SkillGlass vertical CNC system.
The machine is designed to process glass up to 5000 × 3000 mm, providing a complete washing solution for large-format architectural glass.
——————————-————————————————————————————————
The washing machine is configured with:
The configuration provides reliable cleaning and drying while maintaining stable processing of large-format glass.
——————————-————————————————————————————————
One of the key features of this project is the communication between the Techwin washing machine and the SkillGlass CNC.
The CNC can send glass thickness and processing-speed signals to the washing machine.
The washing machine can then automatically adjust its operating parameters according to the production requirements.
This reduces manual input and creates a smoother automated workflow:
SkillGlass CNC → Processing Information → Techwin Washer → Automatic Parameter Adjustment
The washing machine is equipped with frequency inverters to control the motors according to actual production requirements.
When full power is not required, the operating frequency can be reduced, helping to lower energy consumption during production.
This is particularly valuable for continuous glass-processing operations where washing equipment operates for long production hours.
——————————-————————————————————————————————
Maximum glass size
Washing width
Washing brushes
Air knives
CNC data communication
Inverter-controlled operation
——————————-————————————————————————————————
The Strugal project demonstrates how Techwin combines large-format washing capability with intelligent equipment integration.
By communicating directly with the vertical CNC, the washing machine becomes part of the customer’s automated production system rather than operating as an isolated piece of equipment.
Jumbo capacity. Smart communication. Efficient production.
