Proven Success in Global Glass Processing
500+ Global Installations | 20+ Years Industry Expertise | ISO9001 & CE Certified
Customer: Winperax
Country: Turkey
Industry: Architectural Glass
Machine: TWQX-2500G-2 Glass Washing Machine
Max. Glass Width: 2500 mm
Machines Sold in Turkey: 50+ Sets
Applications: Architectural Glass · Low-E Glass · Windows · Doors · Facades
——————————-————————————————————————————————

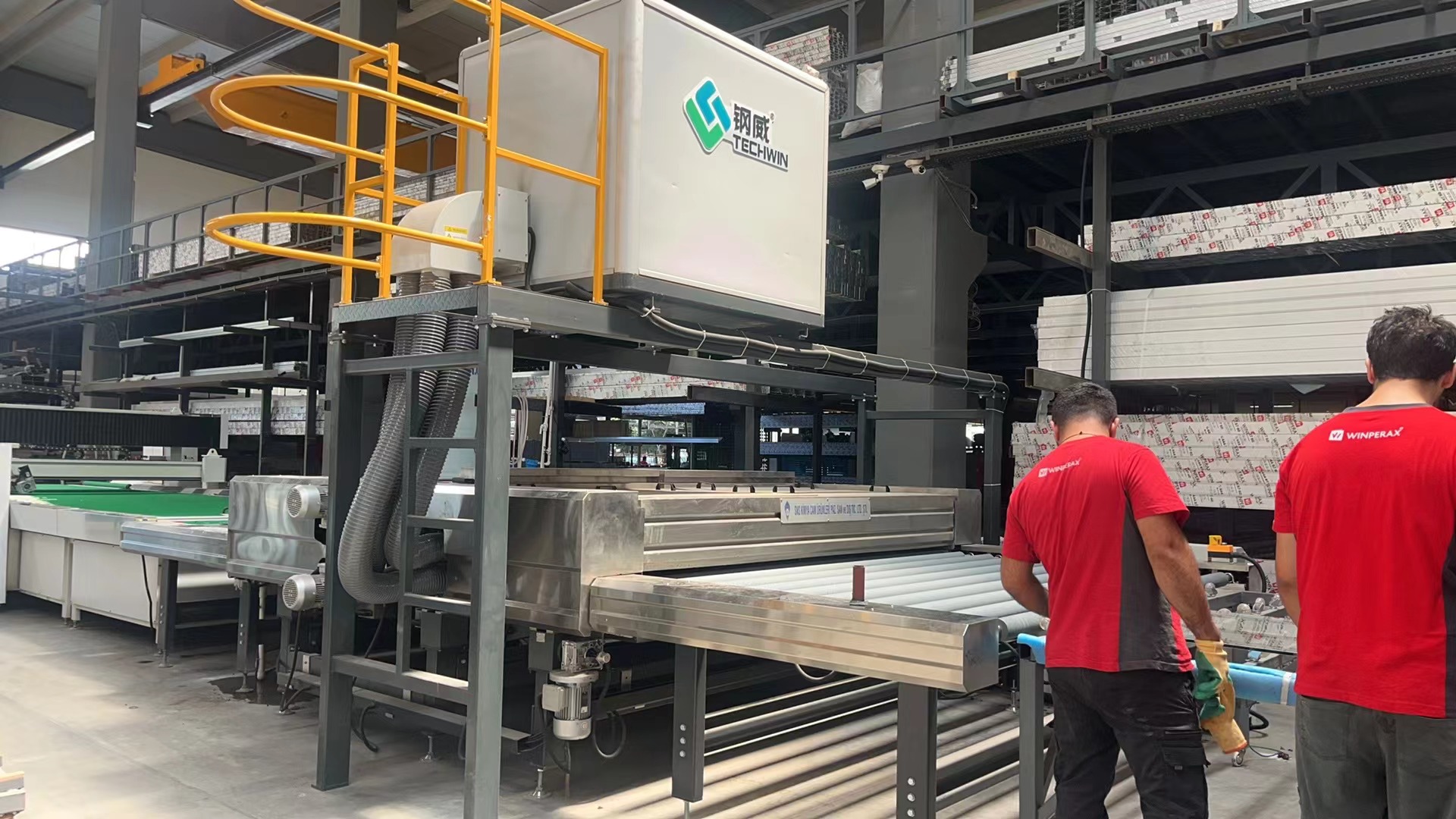

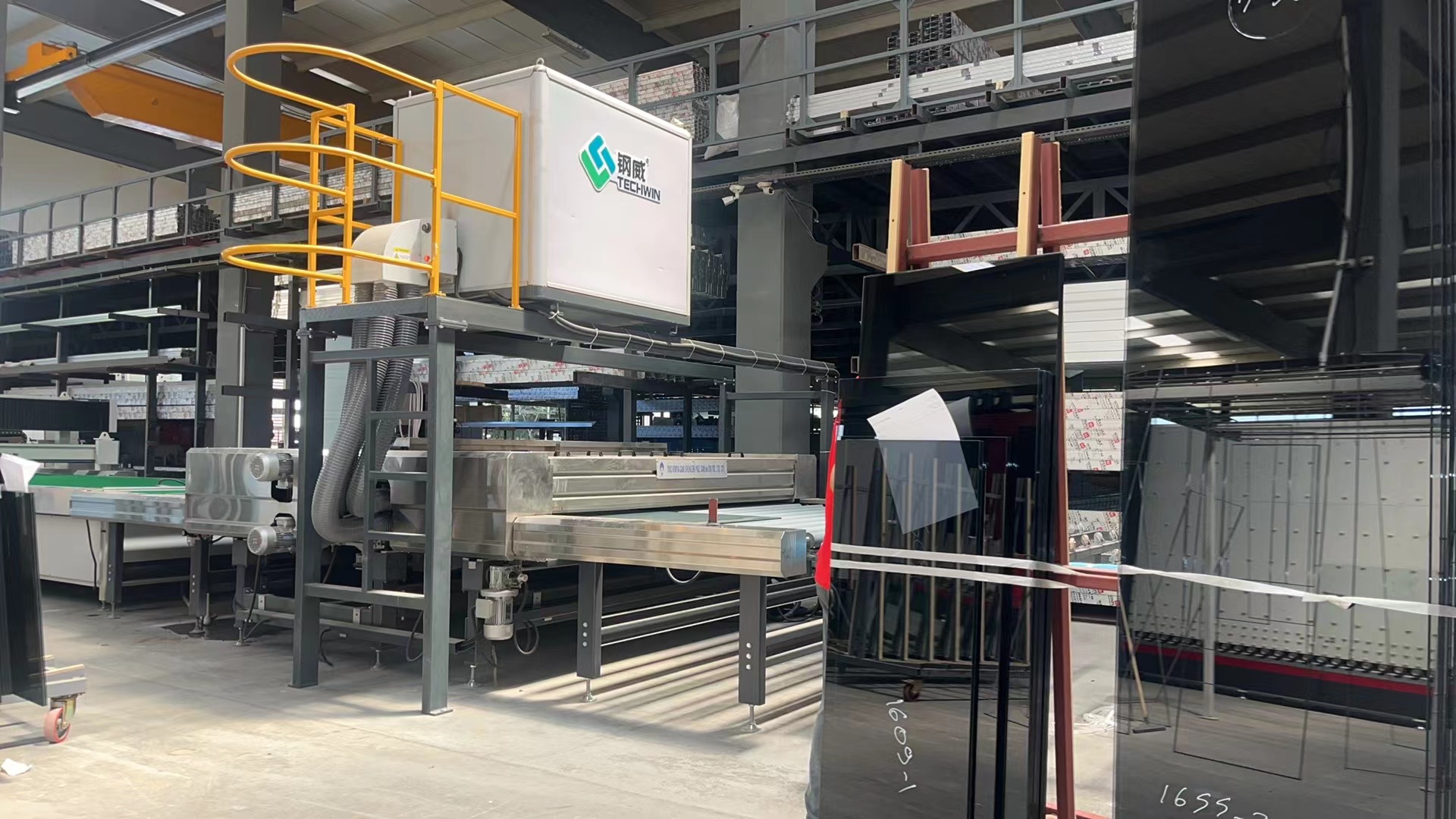

Winperax is one of the Turkish glass processors using Techwin’s TWQX-2500G-2 glass washing machine, a configuration developed for the requirements of mainstream architectural-glass production.
The 2500 mm washing machine has become one of Techwin’s most widely supplied models in Turkey, with more than 50 sets installed across the country.
Other Turkish glass processors using this machine family include Yuklu, Okandan Cam, Ozvarda, Camplaza, Salt Cam and Oznur Cam, demonstrating its broad acceptance in the local market
——————————-————————————————————————————————
For many architectural glass processors, 2500 mm provides an ideal balance between production capacity, flexibility and investment.
The machine can process glass up to:
with a thickness range of:
and glass sizes from:
This makes it suitable for a wide range of everyday architectural-glass production.
——————————-————————————————————————————————
The TWQX-2500G-2 is equipped with:
The machine combines hard and soft brushes to accommodate different glass-cleaning requirements.
A high-pressure blower system provides effective drying after washing.
The multi-stage water system supports continuous cleaning and water circulation.
The machine operates at:
This allows customers to adjust the production speed according to glass type, thickness and cleaning requirements.
The machine is designed for continuous production and can be used for a wide range of architectural glass applications.
| Specification | TWQX-2500G-2 |
|---|---|
| Maximum glass width | 2500 mm |
| Minimum glass size | 400 × 400 mm |
| Glass thickness | 3–25 mm |
| Working speed | 1–12 m/min |
| Washing brushes | 3 pairs |
| Air knives | 2 pairs |
| Water tanks | 4 |
| Blower power | 18.5 kW |
| Machine power | 38.5 kW |
| Total power with water heaters | Approx. 59 kW |
| Table height | 900 ± 50 mm |
| Net weight | Approx. 4,000 kg |
The strongest evidence for this model is its installed base.
Techwin has supplied more than 50 sets of 2500 mm washing machines in Turkey, serving different architectural-glass processors.
This includes customers such as:
Yuklu · Okandan Cam · Ozvarda · Camplaza · Salt Cam · Oznur Cam · Winperax
The large installed base means customers are purchasing a machine that has already been tested in real Turkish production environments.
The TWQX-2500G-2 is designed for customers who need a reliable and proven washing machine rather than an unnecessarily complicated system.
For many architectural-glass factories, 2500 mm is the sweet spot between glass-size flexibility, production efficiency and investment cost.
A proven configuration, trusted by 50+ installations across Turkey.
