High-Speed Glass Double Edging Machines for Efficient Production
TECHWIN manufactures glass double edging machines and complete double edging lines for architectural, appliance, shower, solar and specialty glass processing.
A double edger processes two parallel glass edges simultaneously, providing a continuous production solution for manufacturers looking to increase throughput, improve dimensional consistency and reduce manual handling.
Our double edging systems can be configured from compact production lines to large-format jumbo glass processing systems.
Why Use a Glass Double Edger?
Traditional single-edge processing requires the glass to be handled and repositioned multiple times.
A double edging machine processes two parallel edges simultaneously.
This can provide:
- Higher production efficiency
- More consistent processing
- Reduced manual handling
- Continuous production flow
- Easier integration with automated lines
- Better suitability for high-volume production
The right configuration depends on glass dimensions, edge requirements, production volume and downstream processes.
TECHWIN Double Edging Solutions
Standard Double Edging Lines
A typical TECHWIN line can include:
Measuring → Loading → Double Edging → Turning → Second Double Edging → Washing → Unloading
The exact configuration is customized according to the customer’s glass dimensions and production requirements.

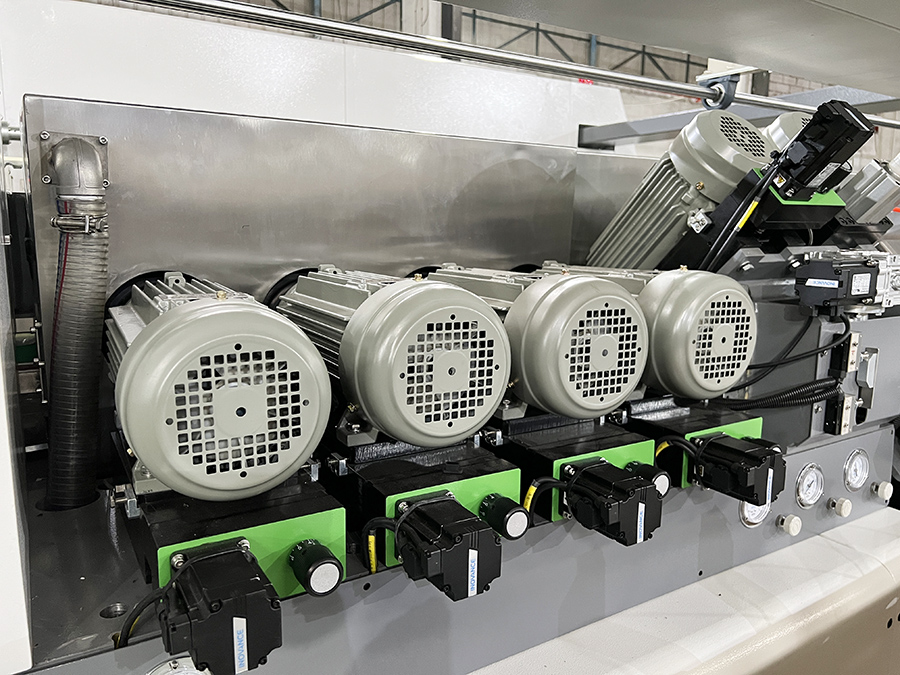

Servo-Controlled Double Edging
Servo-driven grinding systems can provide automatic compensation and precise control during production.
As grinding wheels wear, automatic compensation can reduce the need for frequent manual adjustment.
Automatic Glass Scanning
For mixed-size production, a scanning system can identify the actual glass dimensions before processing.
The machine can then automatically adjust its working position according to the detected dimensions.
This is particularly useful for production environments processing different glass sizes continuously.
Jumbo Glass Double Edging
TECHWIN has developed double edging lines for large-format glass, including applications up to 6000 × 3000 mm.
One jumbo project uses an L-shaped configuration with 26 spindles per edging machine and a production speed of up to 20 m/min.
Applications
TECHWIN double edgers can be configured for:
- Architectural glass
- Window and door glass
- Shower glass
- Appliance glass
- Solar glass
- Laminated glass
- Tempered glass
- Specialty glass
- Jumbo architectural glass
Complete Double Edging Lines
A double edger becomes even more effective when integrated with automatic handling and downstream processing.
A complete line can include:
Automatic Loading
↓
Glass Measuring / Scanning
↓
Double Edging
↓
90° Turning
↓
Corner Grinding
↓
Drilling
↓
Washing
↓
Automatic Unloading
For example, TECHWIN has developed an automated shower-glass line combining scanning, double edging, corner grinding, drilling, washing and unloading.
Customized According to Your Glass
TECHWIN can customize:
- Maximum glass size
- Minimum glass size
- Glass thickness
- Production speed
- Number of grinding spindles
- Servo configuration
- Corner grinding
- Low-E removal
- Automatic scanning
- Conveyor layout
- Turning system
- Washing system
- Loading and unloading
- Communication with other equipment
From Machine Supplier to Production-Line Partner
A double edger should work as part of the complete production process.
TECHWIN can integrate the double edging system with existing or new:
- Cutting lines
- Conveyors
- Drilling machines
- Waterjet systems
- Washing machines
- Tempering lines
- Unloading systems
This allows customers to develop a more continuous and automated glass-processing workflow.
Looking for a Glass Double Edging Machine?
Send us your:
Glass size + thickness + glass type + required production speed + current production process
Our engineers can recommend a suitable double edging configuration for your factory.
