| TECHNICAL PARAMETERS | TWYM-1000 | TWYM-1200 | TWYM-1600 | TWYM-2000 |
|---|---|---|---|---|
| Motor quantity | 8-12 | 8-12 | 8-12 | 8-12 |
| Maximum glass width | 1000 mm | 1200 mm | 1600 mm | 2000 mm |
| Minimum glass size | 180*200 mm | 180*200 mm | 180*200 mm | 180*200 mm |
| Glass thickness | 3-12 mm | 3-12 mm | 3-12 mm | 3-12 mm |
| Glass processing speed | 2 - 10 m/min | 2 - 10 m/min | 2 - 10 m/min | 2 - 10 m/min |
| Diagonal tolerance of glass processing | ± 0.5 mm/m | ± 0.5 mm/m | ± 0.5 mm/m | ± 0.5 mm/m |
| Parallel tolerance of glass processing | ± 0.2 mm/m | ± 0.2 mm/m | ± 0.2 mm/m | ± 0.2 mm/m |

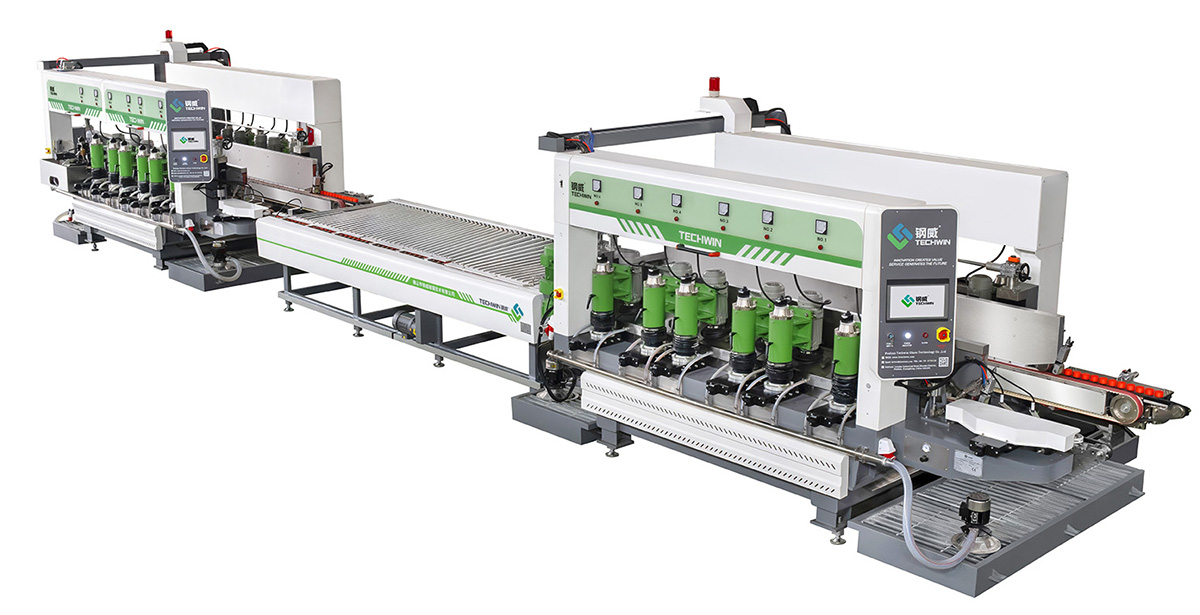

Customization Available: Tailored solutions for your production line, whether standalone machines or fully automated double edging lines.
Global Service Support: Trusted by customers worldwide, with on-site installation, remote training, and prompt after-sales service.
Stable Performance & Competitive Price: Combining durability and affordability, Techwin machines bring real value to your production.
Robust Steel Base: Ensures mechanical stability and minimizes vibration during edging and polishing.
Compact Footprint: Space-efficient layout, perfect for both small workshops and large-scale processing plants.
Corrosion-Resistant Paint Finish: Extends machine lifespan in humid environments.

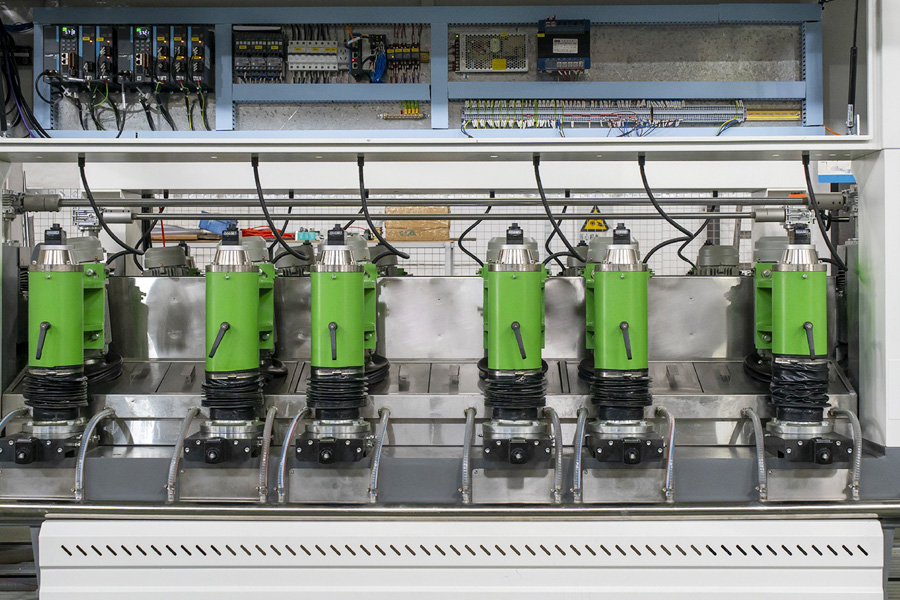

Techwin’s glass pencil edging machines are designed with operator-friendly access to ensure fast and safe replacement of grinding and polishing wheels.
Quick-Access Covers: Protective covers over the spindle area are hinged or removable without tools, allowing fast entry to the grinding chamber.

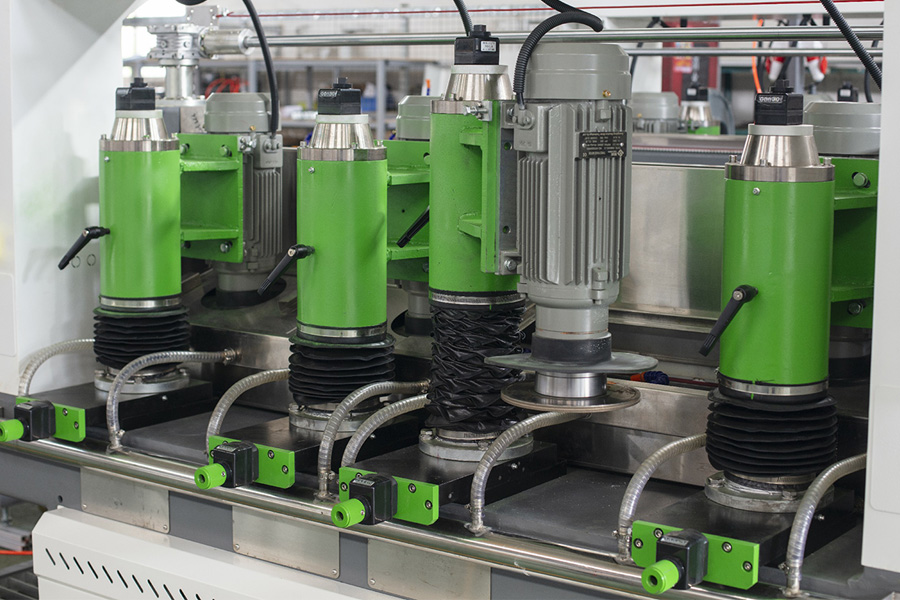

Online wheel replacement: The grinding motors can turn out quickly and to replace the grinding wheels without stopping production.

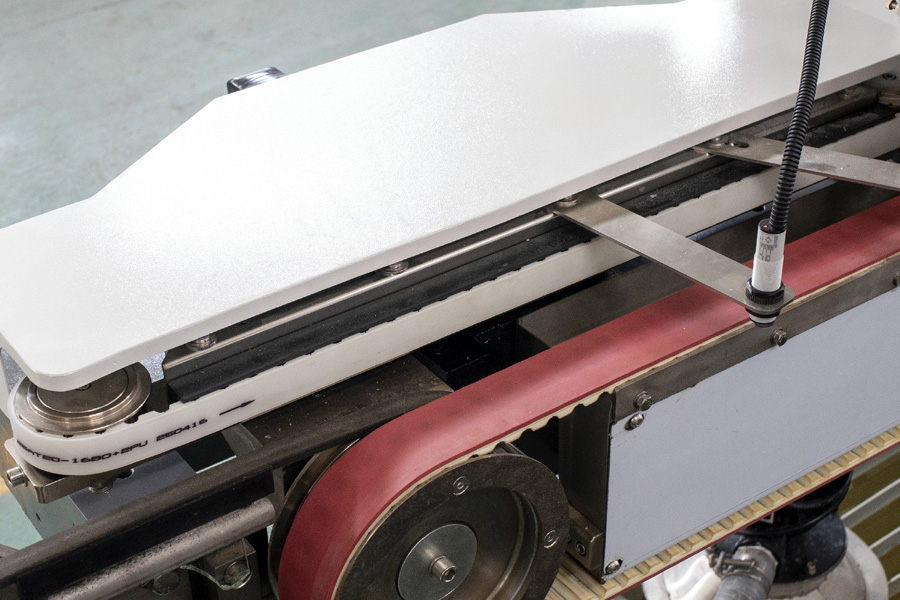

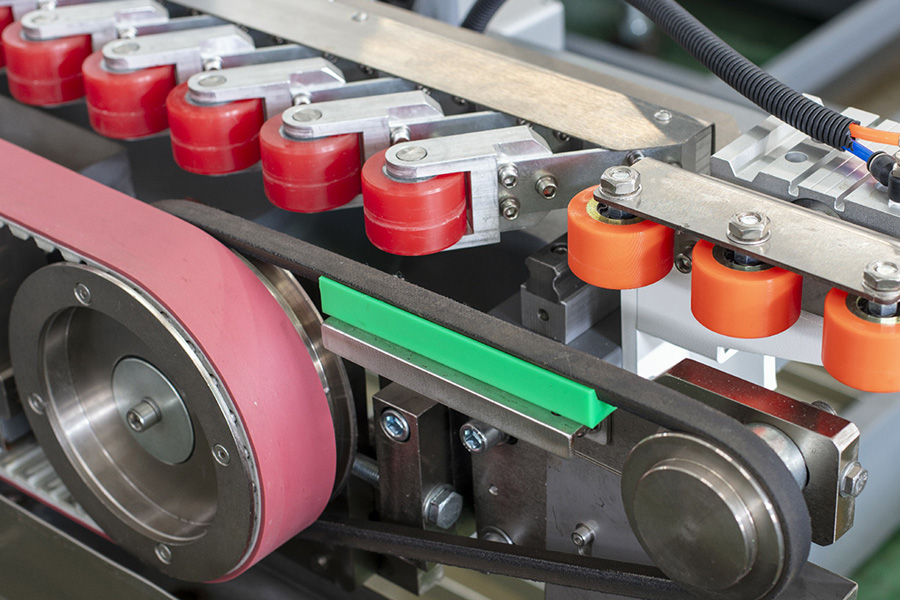

Driven Entry Belts: Specially designed for small size and thin glass sheets at the machine entrance to make it smoothly enter the machine without slipping or jamming.
High-Friction Rubber Surface: Entry belts are coated with thick rubber, ensuring glass are securely gripped and long service life of the belt.

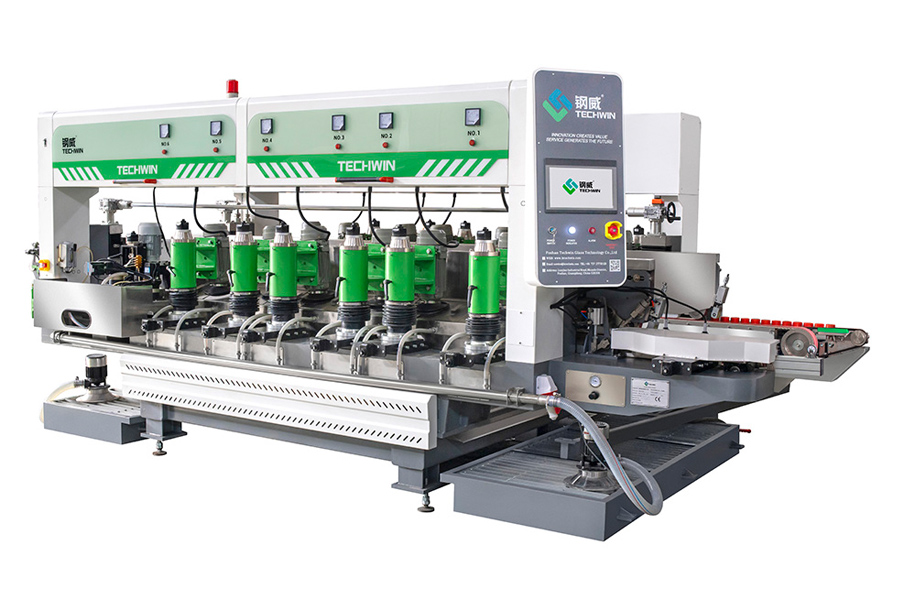

High-Precision Servo Motors
Dubbing spindle on each side is controlled by an independent servo motor, offering accurate positioning, smooth movement, and consistent grinding pressure for all glass corners.

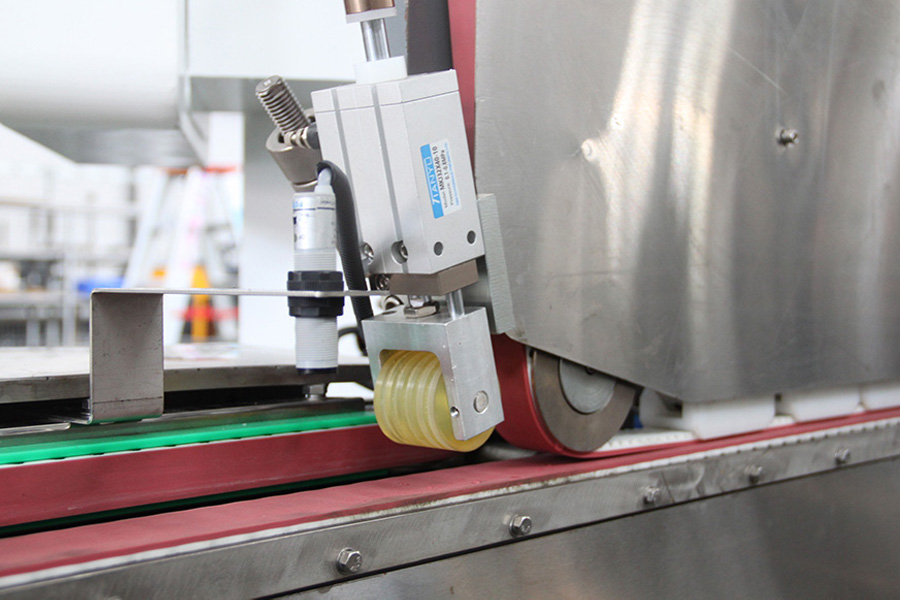

Automatic Corner Detection
Sensors or PLC systems detect the exact start and stop point of each corner, ensuring that the dubbing wheels engage only when needed—no over-grinding or delays.
Adjustable Grinding Depth & Angle
Through the control panel, operators can define how much material to remove based on glass type, thickness, or edge finish requirements.
