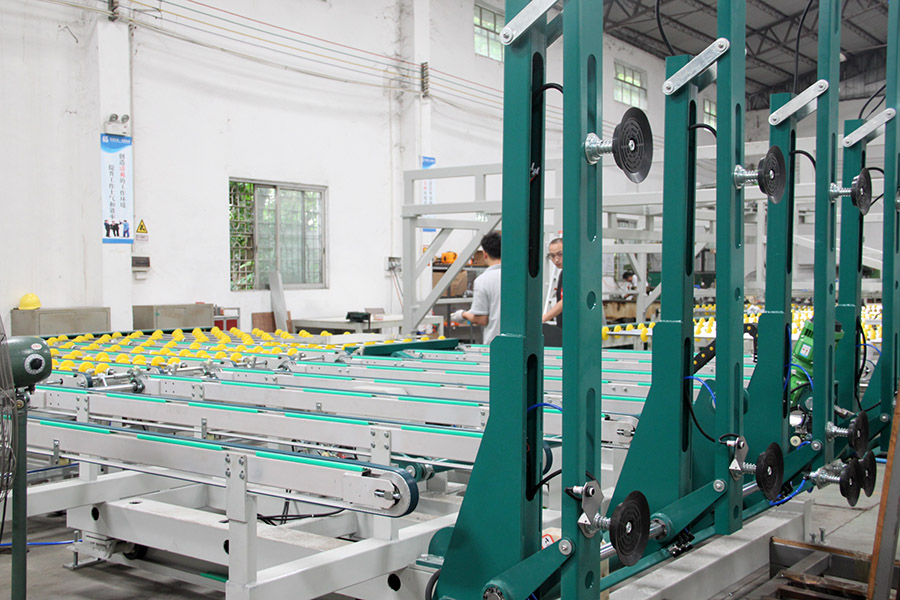

Glass Loader/Unloader
Fast, safe and economic loader or unloader for glass double edging line, cutting table or tempering machine
Product Features:
- Simple to operate, easy to load the glass, achieving high efficient, it’s manpower saving, time saving and energy saving.

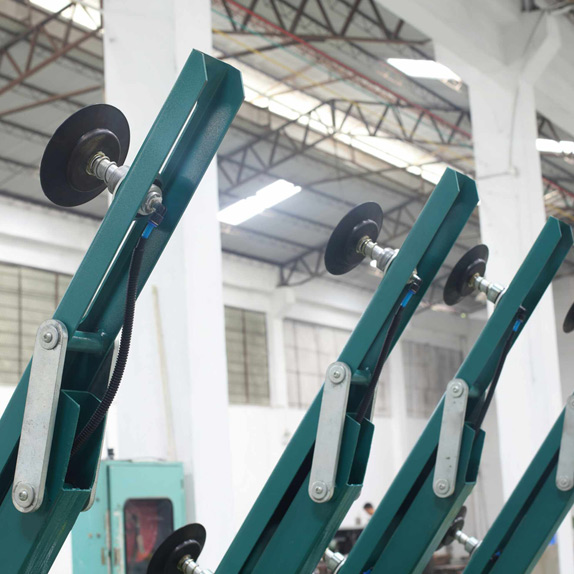

- High quality vacuum system, fast sucking speed and high stability.
- One key reset function, for improving work efficiency.
- High density PU material glass convey wheel.
- Auto and manual modes, it can combine into production line working with other machines.
- High precision and wear-resisting gear and chain, full-enclosed chain.
- All the vacuum cups can be turned on/off manually in the panel, no need to operate the valves near the cups which makes operation easier.
- Side switch is used to be fencing, in case worker rolls inside the machine. When someone touch it, the machine will stop immediately.
- Customized service is available.
Technical Parameters
| Model | ST-3025 |
| Maximum processing size | 3000*2500/ 4500*2500/ 5000*3000 / 6100*3300mm |
| Minimum processing size | 650*350mm |
| Glass thickness | 3-19 |
| Loading speed | 4-6 pcs/min |
| Working table height | 930±20mm |
| Rack depth | 750mm |
| Compressed air | 5-7 bar |
| Working station | One side Double sides or Four sides as option |
