Vertical Glass Washing Solutions for Space-Efficient Production

TECHWIN vertical glass washing machines are designed for glass-processing factories that require vertical handling, efficient use of factory space and reliable cleaning and drying.

Vertical washing technology can be used for architectural glass, Low-E glass and other processed glass applications.

Why Choose a Vertical Glass Washer?

Compared with conventional horizontal washing systems, vertical washing can provide advantages in specific factory layouts.

Typical considerations include:

• Available floor space
• Glass handling direction
• Existing production-line configuration
• Glass dimensions
• Production volume
• Connection with downstream equipment

The right configuration depends on the customer’s production process.

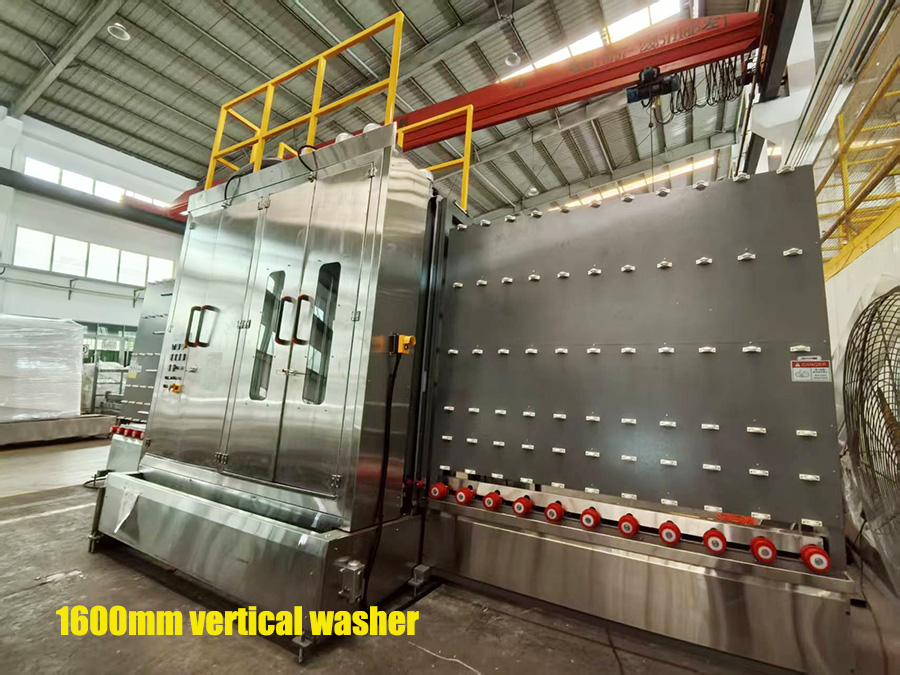

TECHWIN Vertical Washing Configuration

A typical vertical glass washer can include:

• Multiple pairs of washing brushes
• Stainless-steel water-contact components
• Air-knife drying
• Adjustable washing speed
• Automatic control
• Customized glass height
• Left-to-right or right-to-left glass flow

The number and type of brushes can be configured according to the application.

Low-E Glass Applications

Vertical washing machines can be configured for Low-E glass with suitable soft brushes.

The washing system should be selected according to the specific coating, glass dimensions and required production speed.

Large-Format Vertical Glass Washing

TECHWIN can provide vertical washing solutions for glass heights ranging from approximately 1200 mm to 3300 mm, depending on the machine configuration.

This makes vertical washing suitable for architectural glass production involving different glass sizes.

Glass Flow Direction

Depending on the factory layout, the machine can be configured for:

Left → Right

or

Right → Left

This allows the washer to fit more naturally into an existing production line.

Integration With Other Machines

TECHWIN vertical washers can be integrated with:

• Vertical Seaming machines
• CNC machines
• IGU production lines
• Automatic conveying systems

When Should You Consider a Vertical Washer?

A vertical washing solution may be suitable when:

• Floor space is limited
• Your production process uses vertical handling
• Glass dimensions require a tall machine configuration
• The existing production line is designed for vertical transfer
• You need a customized glass flow direction

Request a Vertical Glass Washing Machine

Send us your:

Glass height + glass width + thickness + production speed + glass type + factory layout

TECHWIN can recommend a suitable vertical washing configuration.
